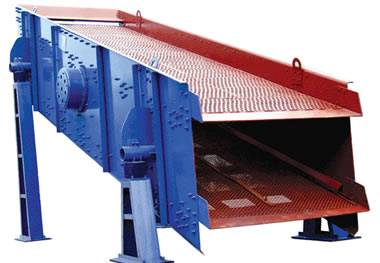

Vibrating Sieve Screen

Vibrating sieve screen with its approximately circular movement  is of multilayer and high efficient. The eccentric shaft vibration exciter and partial block help to adjust amplitude. It coats with multi - component organic binder on perforated metal plate and screen cloth contact to enhance corrosion to form a bonding layer, so that bolting cloth and perforated metal plate as together, constitute the whole napped component.

Weaving and characteristics: Acid - resistant, Alkali-resistant, Heatproof wear and cold-proof.

Use: Vibrating screen is mainly used for quarry screen, oil industry and iron slop vibration sifting and coal mining.

Variety: Single layer vibrating screen; double layer vibrating screen, wave type vibrating screen, high efficiency vibrating screen.

Vibrating Sieve Screen
Vibrating Sieve Screen
Vibrating Sieve Screen

Features of Vibrating Screen :

Type Screen Spec .mm Layers Sieve Pore mm Max. Feed Size mm Capacity t/h Power KW Vibrating Frequency HZ
YA1230 1200×3000 1 3-50 200 7.5-70 5.5 800-970
2YA1230 1200×3000 2 3-50 200 7.5-80 5.5 800-970
2YA1230 1200×3000 3 3-50 200 7.5-80 7.5 800-970
YA1237 1200×3700 1 3-50 200 7.5-70 5.5 800-970
2YA1237 1200×3700 2 3-50 200 7.5-80 5.5 800-970
3YA1237 1200×3700 3 3-50 200 7.5-80 7.5 800-970
2YA1548 1500×4200 2 5-50 400 50-208 15 970
3YA1548 1500×4800 3 5-50 400 50-250 15 970
3YA1848 1800×4800 3 5-80 400 50-300 18.5 970
3YA1860 1800×6000 3 5-80 400 50-350 22 970
3YA2160 2100×6000 3 5-100 400 100-500 30 730
2YA2460 2400×6000 2 5-150 400 150-700 30 730
