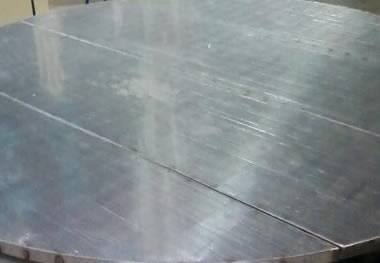

Lauter Tun Screens

A wedge wire support grid provides a false bottom in a lauter tun in many breweries. The lauter tun screen sits on a ledge that is positioned on the inside diameter of the tank.  It  may also be necessary to have support beams depending on loading and tank diameter.

Lauter Tun screen description:

• 59 3/4" OD made in 5 sections
• 93V wedge wire on .074" × 3/4" support rods at 1 1/2" centers.
• Nominal slot openings: 0.030".
• 1/8" × 1" banding around each section four.
• -.074" × 1 1/2" seal strips (shipped loose) all.
• Type 304 stainless steel.
